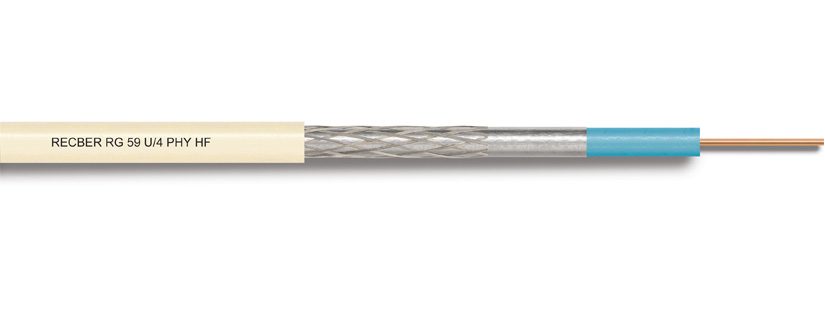

RG 59 U/4 PHY-HF (Cu/Al)

Categories: ,
Operating temperature -30 °C … +70 °C
Bending radius min. 10 x D
Impedance 75 ± 3 Ω
Capacitance 54 ± 2 pF/m
Velocity of propagation %82 ± 2
Insulation resistance min. 2 G Ω x km
Operating voltage max. 1000 V
Test voltage 2500 V
Standards EN 50117, IEC 61196
Fire performans Vertical flame propagation EN 60332-1-2

Corrosive gas EN 60754-1/2

Smoke density EN 61034-2

Satellite distribution2) 2150MHz – 50m
VHF/UHF distribution3) 860MHz – 120m
S-band Cable TV distribution3) 470MHz – 170m
Zayıflama @20 °C max 50 MHz 5,95 dB/100m
200 MHz 11,71 dB/100m
470 MHz 18,08 dB/100m
860 MHz 24,79 dB/100m
1000 MHz 26,85 dB/100m
2150 MHz 40,62 dB/100m
2400 MHz 43,16 dB/100m
3000 MHz 48,87 dB/100m
Return Loss 5-470 MHz > 20dB
470-1000MHz > 18 dB
1000-2000 MHz > 16 dB
2000-3000 MHz > 15 dB

Utilising physical foam insulation technology, cables have a rated impedance of 75 ohms and comply with EN 50117. They are primarily used in Cable TV, individual/central satellite distribution and CCTV security camera systems. Cables are composed of halogen-free materials (flame retardant materials that do not emit toxic gas or black dense smoke that lowers visibility). They are primarily used in highly populated areas that should have fire resistance, such as housing estates, hotels, shopping malls and smart buildings.

Conductor Electrolytic copper wire, Ø 0.81 mm (AWG20)

Insulation Physical foam PE, Ø 3.70 mm 70°C, EN 50290-2-23

Screen Cu-Pet foil min. 100% coverage Electrolytic braided copper wire

Sheath HFFR – RAL 9011 Black, Ø 5.80 mm 70°C, EN 50290-2-27
