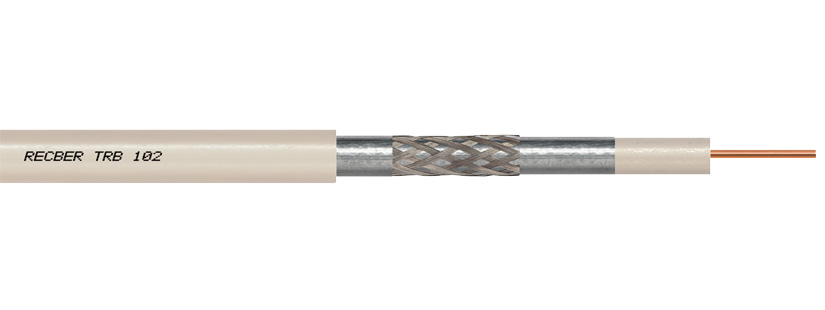

TRB 102

Operating Temperature -30 °C … +70 °C
Bending radius min. 10 x D
Impedance 75 ± 3 Ω
Capacitance 52 ± 2 pF/m
Velocity of propagation %84 ± 2
Insulation resistance min. 2 G Ω x km
Operating voltage max. 1300 V
Test voltage 3000 V
Standards EN 50117, IEC 61196
Fire performans Düşey alev yayılma EN 60332-1-2
Satellite distribution2) 2150MHz – 59m
VHF/UHF distribution3) 860MHz – 147m
S-band Cable TV distribution3) 470MHz – 202m
Attenuation @20°C max 50 MHz 4,90 dB/100m
200 MHz 9,60 dB/100m
470 MHz 14,8 dB/100m
860 MHz 20,4 dB/100m
1000 MHz 22,1 dB/100m
2150 MHz 33,7 dB/100m
2400 MHz 35,8 dB/100m
3000 MHz 40,7 dB/100m
Return Loss 5-470 MHz > 20 dB
470-1000MHz > 18 dB
1000-2000 MHz > 16 dB
2000-3000 MHz > 15 dB
Screen Attenuation 30-1000MHz ≥ 95 dB
1000-2000 MHz ≥ 85 dB
2000-3000 MHz ≥ 75 dB
Transfer Impedance 5-30MHz ≤ 2,5 mΩ/m
Screen Class Class A+

It is designed for the distribution of satellite and terrestrial broadcasts operating in the CATV distribution networks in accordance with EN 50117 standards. Used as distribution cable for indoor applications.

conducture Tavlı bakır tel Ø 1,02mm
İnsulation Fiziksel köpüklü PE Ø 4,60mm
Screen Al-Pet-Sy folyo %100 kapama
kalaylı bakır tel örgü %60 kapama
Al-Pet folyo %100 kapama
Sheath Beyaz PVC Ø 6,80mm
